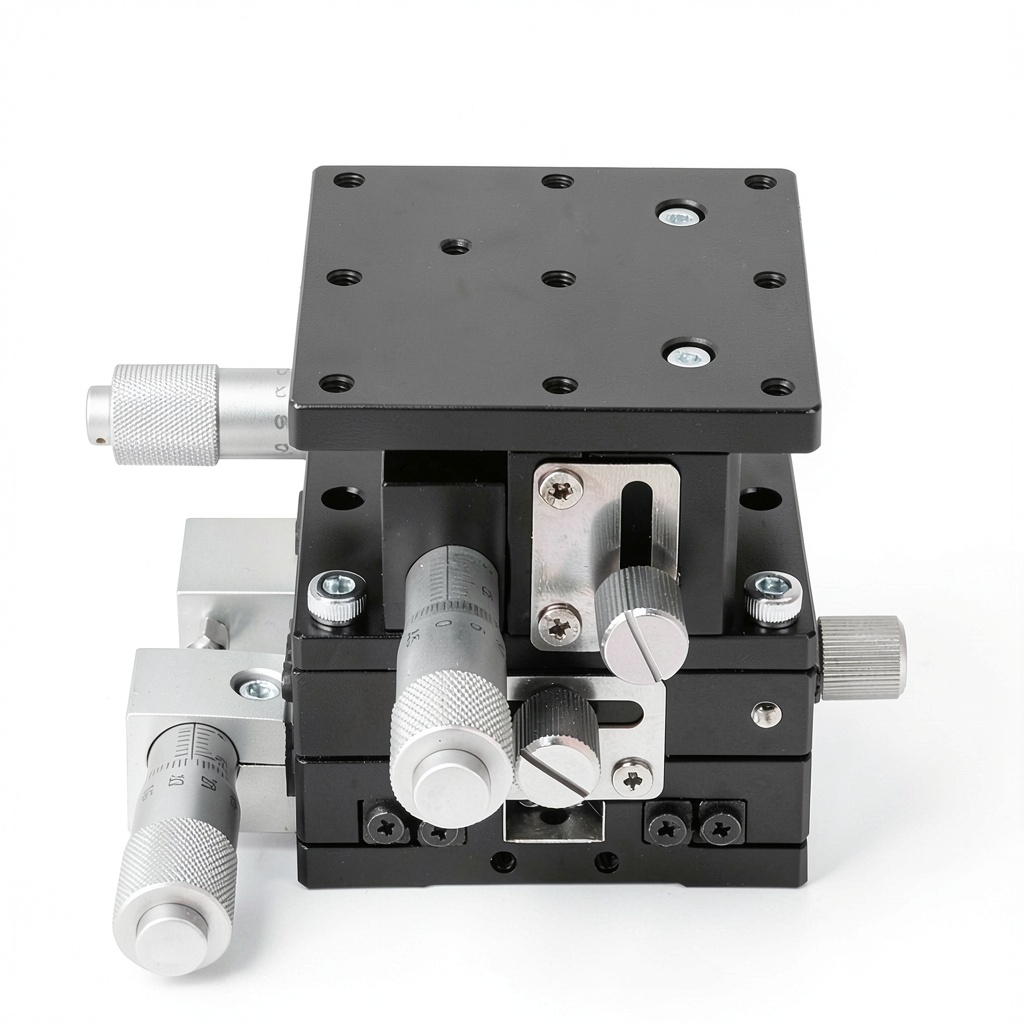

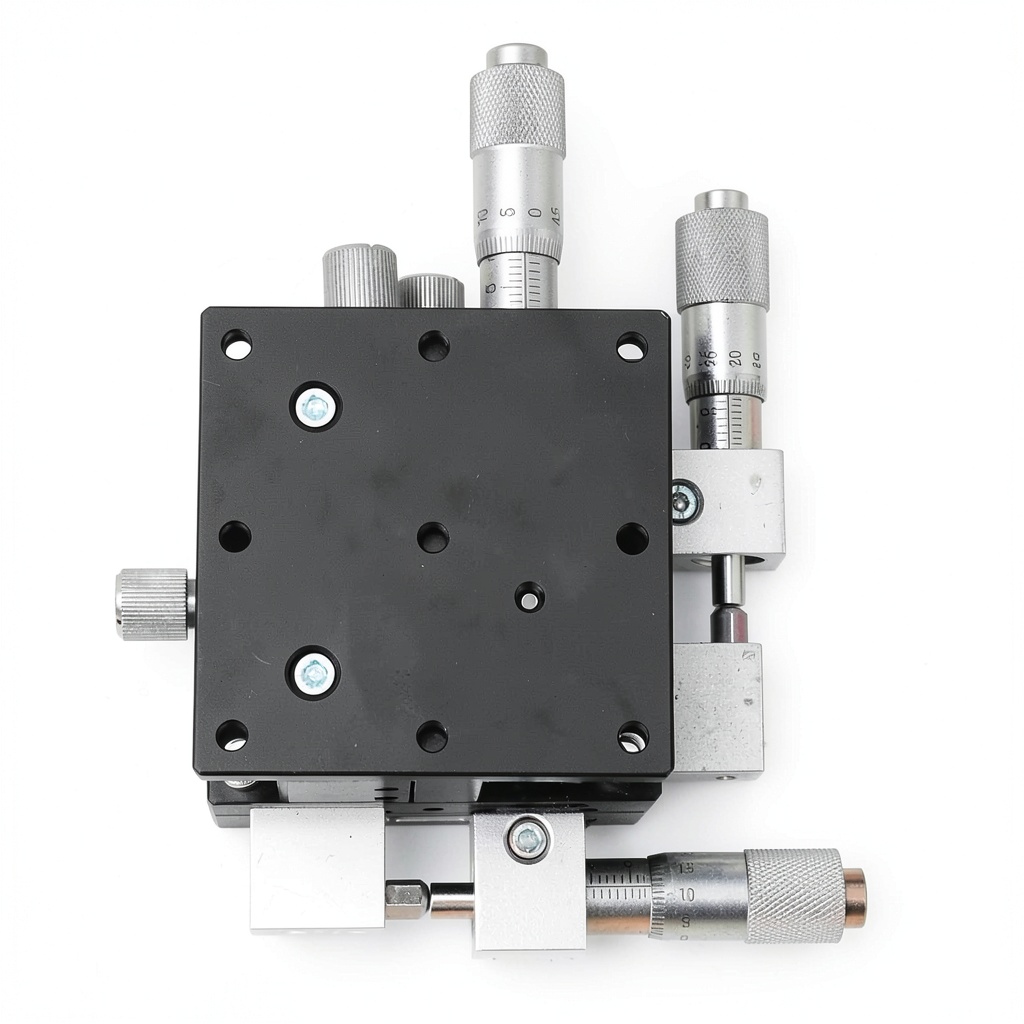

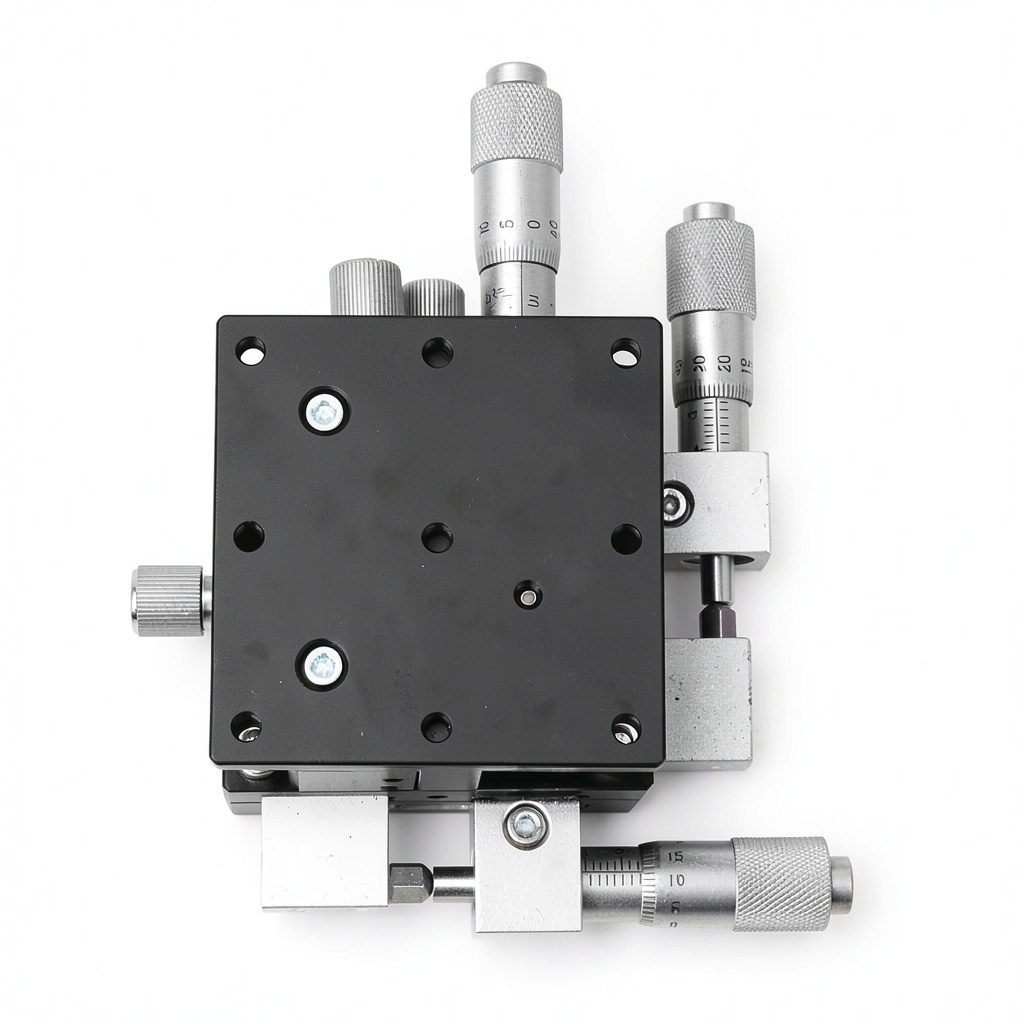

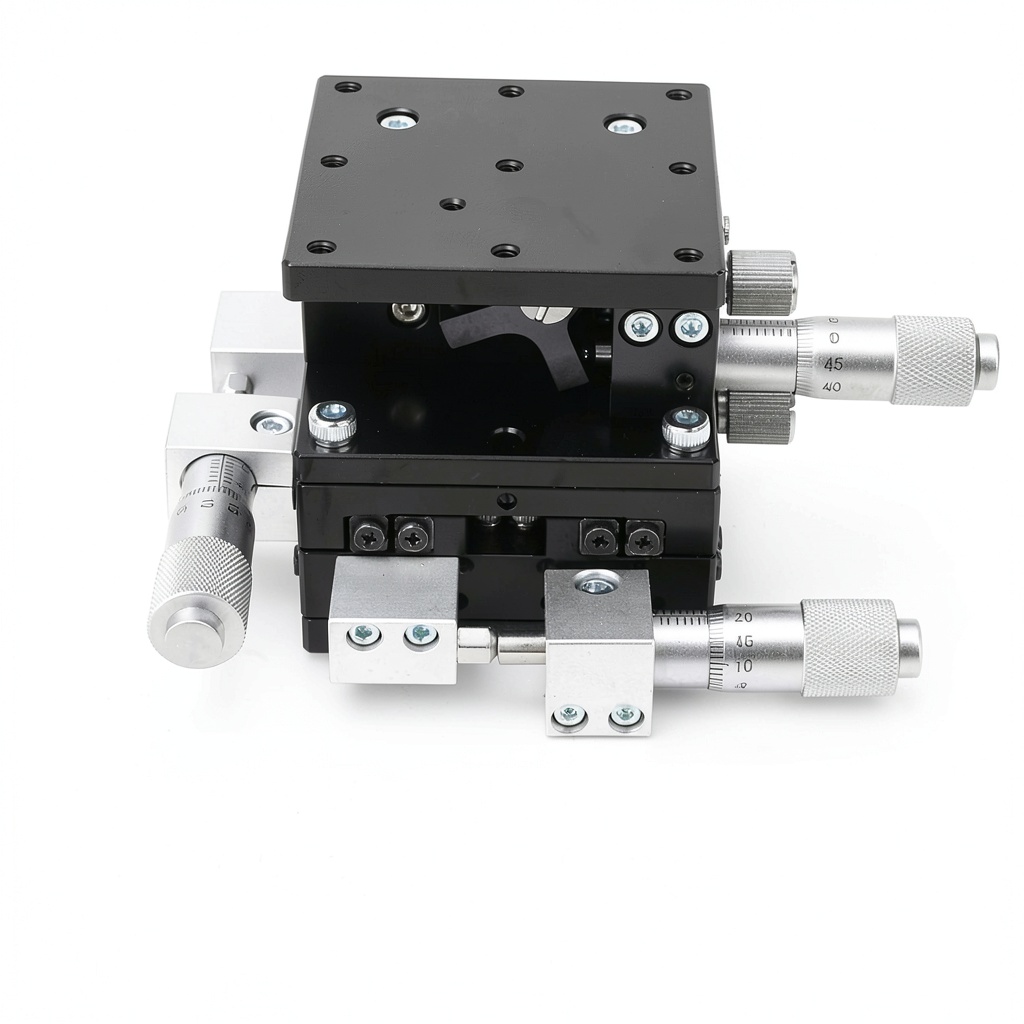

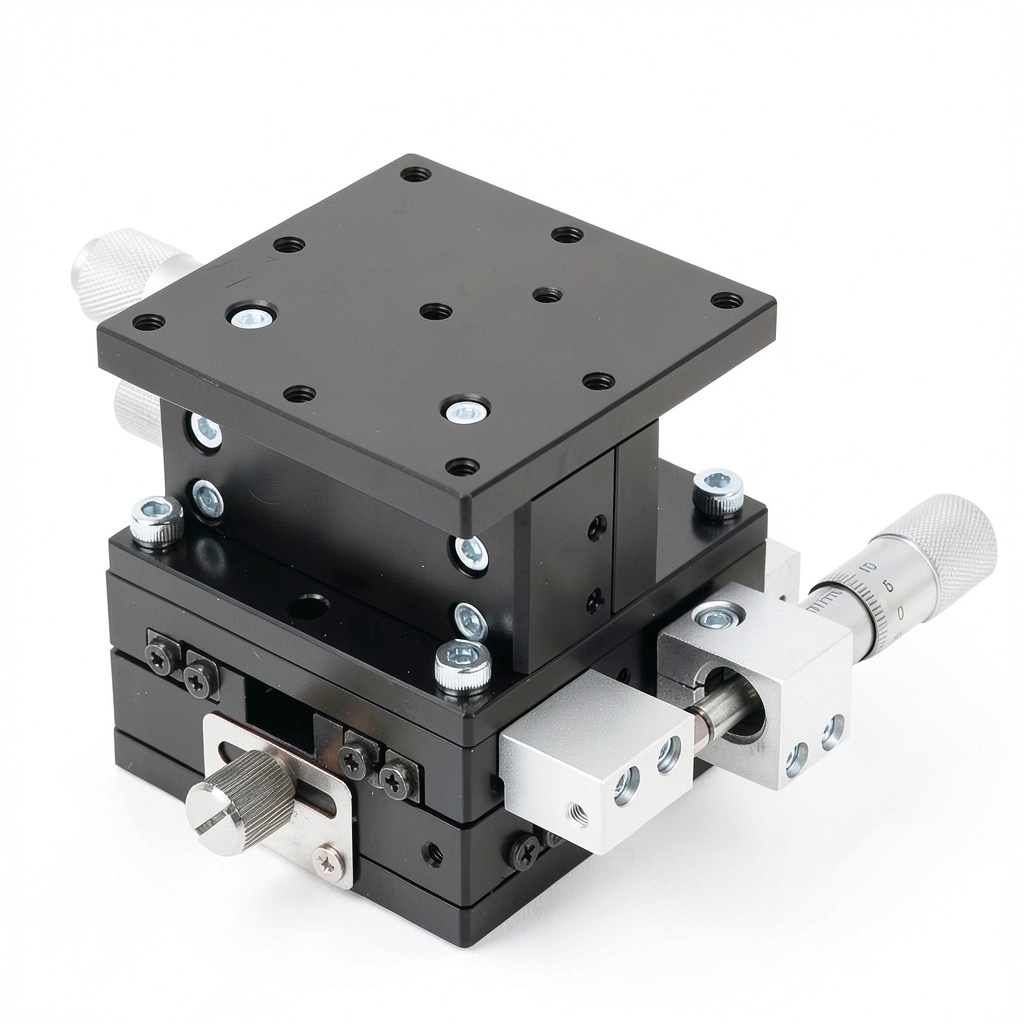

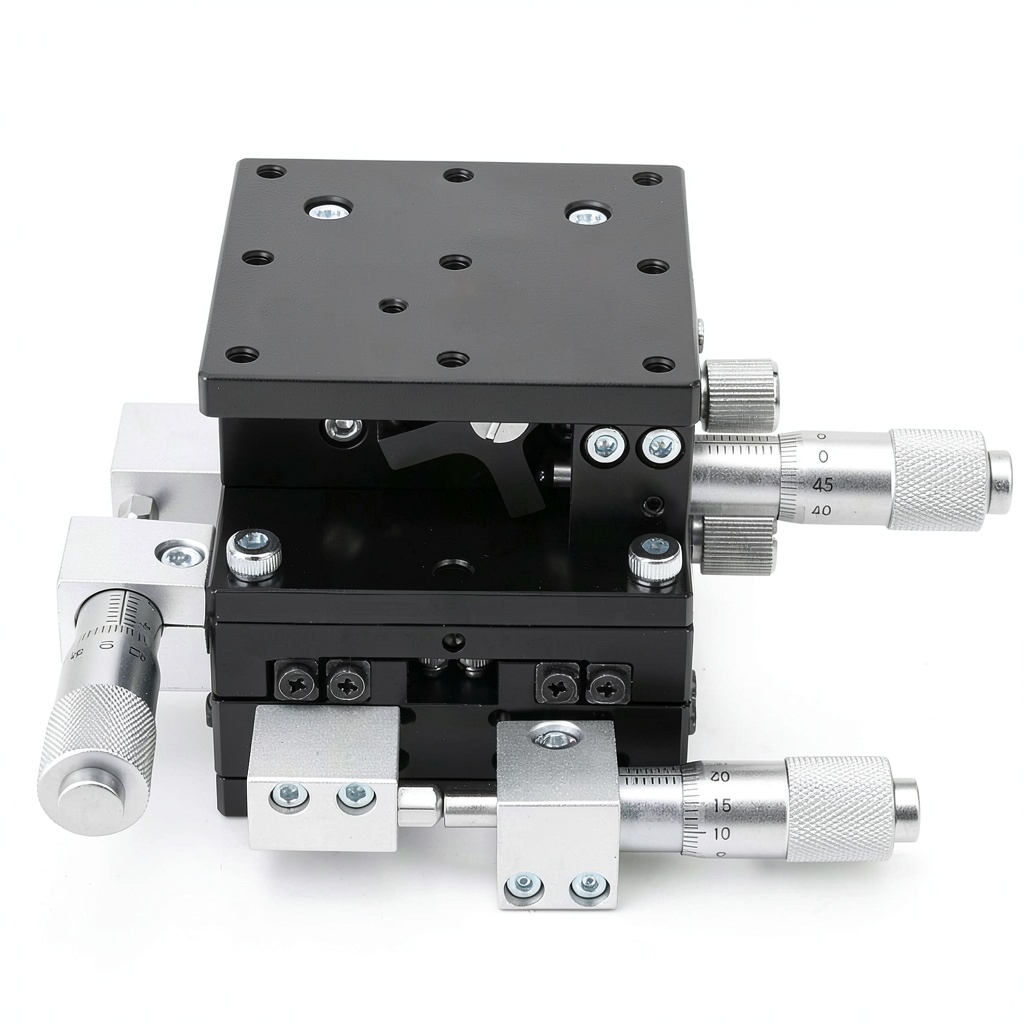

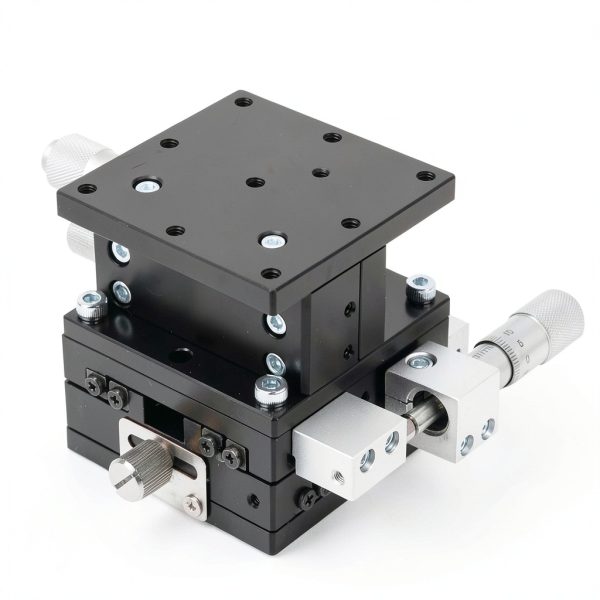

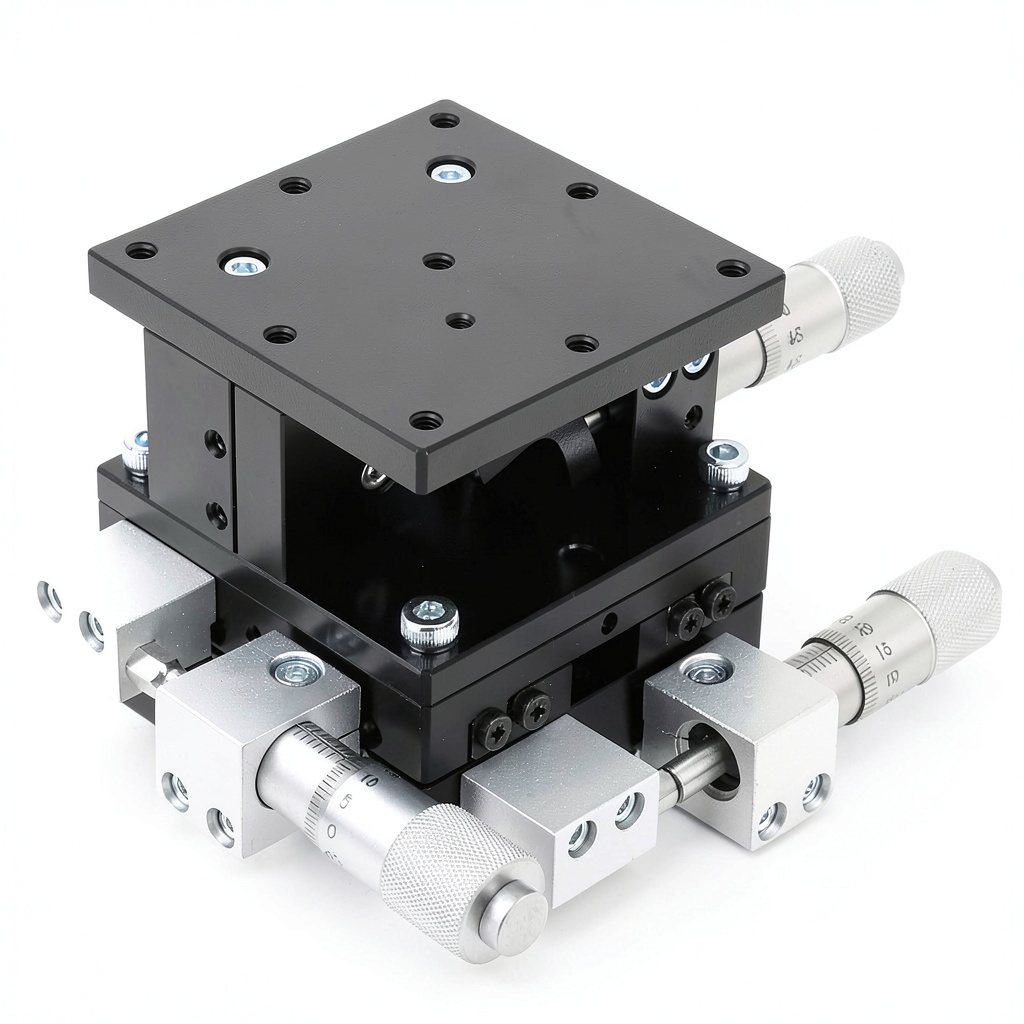

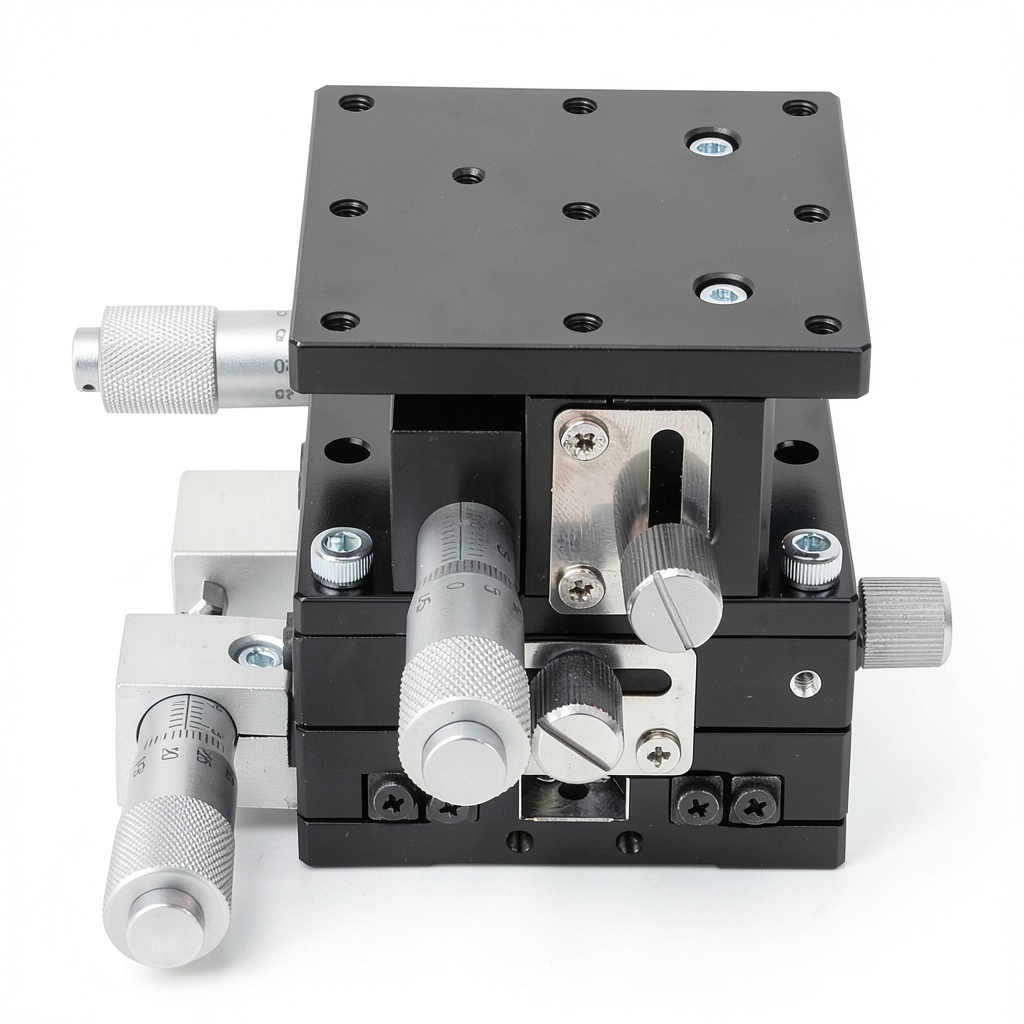

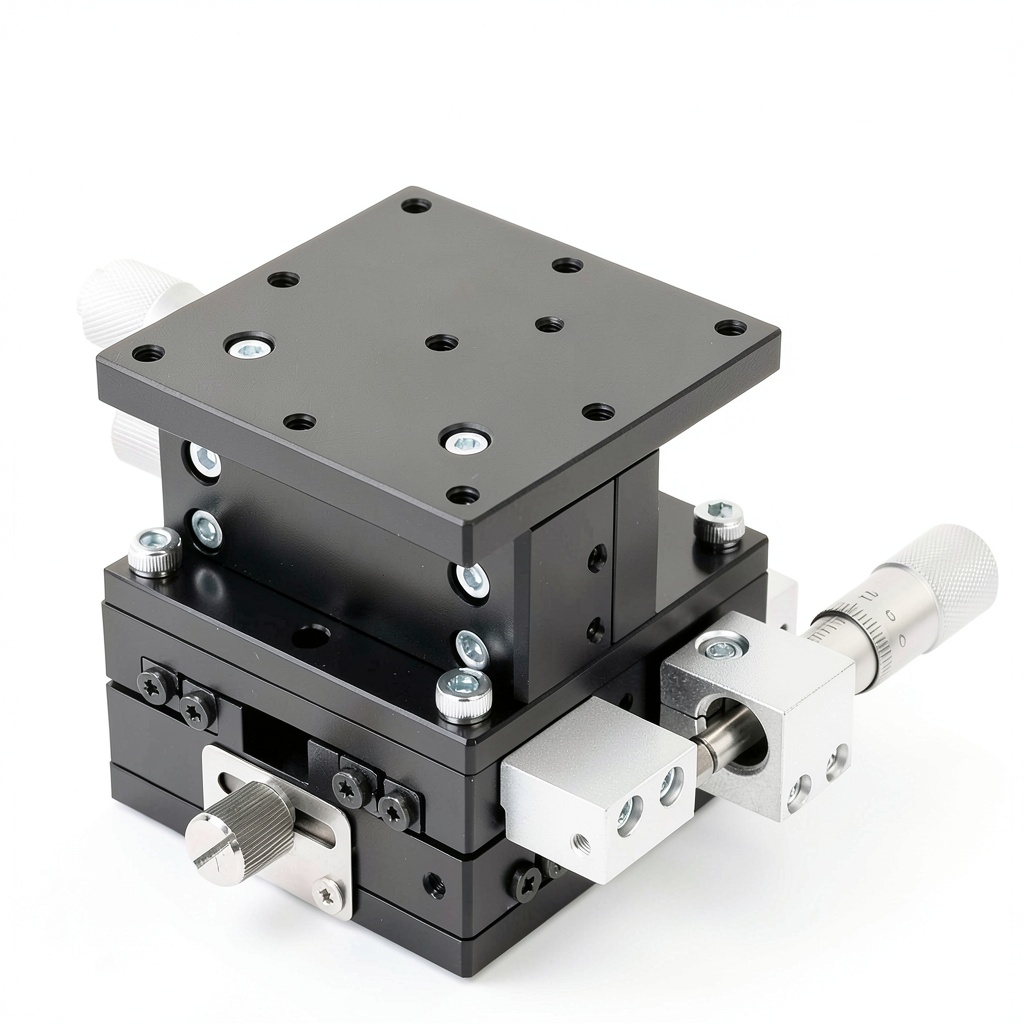

Garosa LD60-LM XYZ 3-Axes Linear Stage 60x60mm Manual Sliding Table

Description

Product Overview

The Garosa LD60-LM 3‑Axes Linear Stage is engineered for high‑precision motion control in demanding industrial and scientific environments. Measuring 60 × 60 mm, the manual sliding table provides a compact footprint while delivering a robust load‑bearing capacity thanks to its high‑strength bearing steel rails. The rail surface is electro‑plated, granting resistance to corrosion and wear, which extends service life even when exposed to harsh chemicals or abrasive particles. The stage incorporates a micrometer‑driven adjustment mechanism that achieves a repeatable positioning accuracy of 0.03 mm, enabling fine‑tuned displacement for applications such as optical alignment, precision machining, and quantitative testing. XYZ three‑axis degrees of freedom are fully adjustable, allowing users to set exact rotational and translational positions without the need for additional tooling. The design includes a carbide side head that locks securely, preventing unintended movement during operation. All components are machined to tight tolerances, ensuring smooth, jitter‑free motion across the entire travel range.

Usage

This linear stage excels in a variety of settings where precision and reliability are paramount. In manufacturing, it can be integrated into CNC machines, assembly lines, and robotic workcells to provide accurate positioning of tools or workpieces. Testing laboratories benefit from its stable platform for calibrating sensors, conducting vibration analysis, or performing repeatable measurements on prototypes. Optical research facilities use the stage to align lenses, mirrors, and laser systems with sub‑millimeter precision, while semiconductor fabrication environments rely on its low‑backlash movement for wafer handling and mask alignment. The manual operation eliminates the need for external power sources, making the stage suitable for field deployments, portable test rigs, and educational labs where simplicity and safety are essential. Its compact size allows it to fit into confined spaces, and the adjustable XYZ configuration adapts to diverse workflow requirements, from simple linear translation to complex multi‑axis positioning tasks.

Why Choose Us

Choosing the Garosa LD60-LM means selecting a product backed by rigorous quality assurance processes and a reputation for durability. Each stage undergoes a multi‑stage inspection that includes dimensional verification, load testing, and functional performance checks to guarantee that it meets or exceeds industry standards. The use of premium materials such as carbide side heads and high‑strength bearing steel rails ensures that the stage can withstand heavy loads and continuous operation without deformation. Garosa provides comprehensive technical documentation, including detailed installation guides, calibration procedures, and maintenance schedules, empowering users to achieve optimal performance throughout the product’s lifecycle. In addition, our dedicated support team offers responsive assistance for troubleshooting, spare part sourcing, and customization requests, reinforcing our commitment to customer satisfaction. With a proven track record in the linear motion market, Garosa delivers solutions that combine precision engineering with cost‑effective reliability.

Key Features

• High‑strength bearing steel rails deliver smooth, low‑friction motion and long‑term durability.
• Micrometer‑driven adjustment provides 0.03 mm repeatable positioning accuracy for fine‑tuning tasks.
• Adjustable XYZ three‑axis design offers flexible alignment and multi‑directional positioning.
• Electro‑plated rail surface resists corrosion and wear in harsh industrial environments.
• Comprehensive after‑sales support includes technical assistance, spare parts, and customization options.

FAQ

What is the maximum load capacity of the LD60-LM stage?

The stage is designed to support a static load of up to 150 kg, providing ample capacity for most precision machining and testing applications.

Can the stage be integrated into an automated system?

Yes, while the LD60-LM is a manual device, it can be retrofitted with motorized drives and compatible controllers to enable automated motion in robotic or CNC setups.

How do I maintain the bearing steel rails for optimal performance?

Regular cleaning with a lint‑free cloth and mild solvent removes contaminants. Periodic lubrication with a light oil recommended for steel bearings helps maintain low friction and prevents corrosion.

Is the micrometer adjustment lockable to prevent accidental movement?

Each micrometer knob includes a locking screw that can be tightened after setting the desired position, ensuring the stage remains stable during operation.

What warranty does Garosa provide for this linear stage?

Garosa offers a standard one‑year limited warranty covering manufacturing defects, with options to extend coverage through service contracts.
